Linkageless Controls and O2 Trim

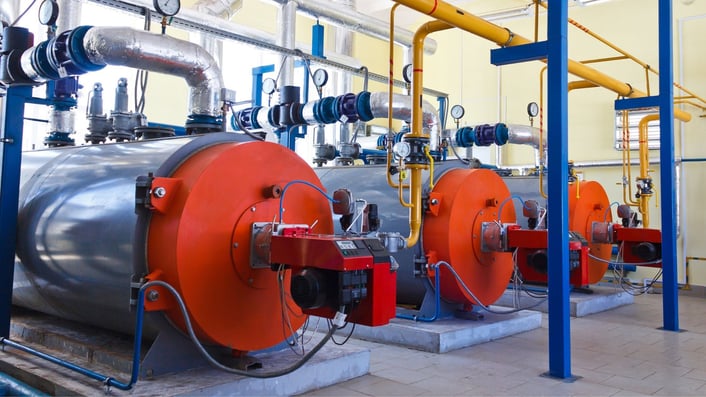

Industrial and commercial boiler rooms have come a long way in recent decades. While burners and boilers still perform the same basic task, producing heat and steam, the technology behind their controls has evolved dramatically. Old mechanical linkages and single-point control systems are being phased out in favor of smarter, more efficient digital solutions.

Among the most impactful upgrades are linkageless burner controls (often referred to as parallel positioning systems) and O₂ trim systems. These technologies work hand-in-hand to optimize combustion, reduce wasted fuel, cut emissions, and keep facilities compliant with increasingly strict environmental regulations.

In this blog, we’ll break down:

What linkageless controls are and why they matter
How O₂ trim works to maximize efficiency
The benefits of upgrading your combustion system
Real-world savings in fuel, maintenance, and compliance
How Tate Engineering can help with retrofits and upgrades

By the end, you’ll see why upgrading your burner and controls is no longer a “nice-to-have,” but a must-have investment in efficiency and reliability.

The Evolution of Combustion Controls

For decades, boilers and burners were controlled by mechanical linkages and cam-driven systems. These setups relied on metal rods, levers, and gears to control airflow and fuel flow to the burner.

While this worked for its time, there were major drawbacks:

Wear and tear: Over time, linkages loosen and slip, causing burners to run inefficiently.
Limited precision: Mechanical systems can only provide rough “set points” for fuel and air, often leading to wasted energy.
Safety risks: Poorly tuned combustion increases the risk of carbon monoxide, soot, or flameouts.
Compliance challenges: Modern emissions standards are nearly impossible to meet with outdated controls.

Today’s facilities need precise, automated solutions that keep systems tuned for optimal performance,day in and day out. That’s where linkageless controls and O₂ trim systems come in.

What Are Linkageless Controls?

Also known as parallel positioning systems, linkageless controls replace old mechanical linkages with digital actuators and an electronic control system. Instead of relying on gears and cams, each actuator (for fuel valves, dampers, etc.) is independently controlled and synchronized by a central processor.

How They Work

Electronic actuators replace mechanical rods, adjusting air dampers and fuel valves with pinpoint accuracy.
Position feedback loops ensure that actuators hit their exact setpoints every time.
Digital mapping allows engineers to program precise fuel/air curves tailored to the burner and application.

This eliminates the “slop” and inaccuracy of mechanical systems, allowing burners to run closer to their true optimal performance curve.

What Is O₂ Trim?

Even with parallel positioning, outside factors can cause combustion to drift out of tune. Variations in fuel quality, changes in air density, seasonal shifts, and equipment wear can all affect the air-to-fuel ratio.

An O₂ trim system adds another layer of control. It uses a zirconium oxide oxygen sensor in the flue gas to continuously monitor oxygen levels. The system then makes small adjustments in real time,adding or reducing air as needed,to maintain optimal combustion.

Key Features

Continuous feedback loop from flue gas oxygen sensor
Automatic fine-tuning to correct for changing conditions
Reduced excess air without risking unsafe CO levels
Improved reliability compared to “fixed” control curves alone

Together, linkageless controls + O₂ trim deliver a one-two punch of precision and adaptability.

Why You Need These Upgrades

1. Fuel Efficiency

Burners with mechanical linkages often run with excess air to “play it safe.” This ensures complete combustion but wastes fuel. By maintaining tighter air-to-fuel ratios, linkageless controls with O₂ trim can reduce fuel consumption by 3–5% or more.

For large boilers, this translates into tens of thousands of dollars per year in fuel savings.

2. Lower Emissions

Reducing excess air not only saves money,it also reduces NOx and CO₂ emissions. Many states and municipalities now enforce strict boiler emissions requirements. Upgrading to modern controls makes compliance achievable and helps avoid costly fines.

3. Reliability & Safety

Mechanical linkages drift over time, forcing operators to schedule frequent tune-ups. Linkageless controls maintain their precision for years with minimal adjustment. When paired with O₂ trim, the system self-corrects in real time, reducing risks of unstable combustion.

4. Maintenance Savings

Less soot, fewer shutdowns, and fewer manual tune-ups mean lower operating costs. Your maintenance team spends less time on reactive fixes and more time on planned reliability improvements.

5. Remote Monitoring & Integration

Modern combustion controls often integrate with plant building management systems (BMS). This allows for remote monitoring, automated reporting, and even predictive maintenance alerts,capabilities mechanical systems can’t match.

Compliance and Regulatory Pressure

Environmental regulations are tightening every year. Whether it’s local air quality boards, the EPA, or state-level agencies, facilities are under growing pressure to reduce their emissions footprint.

Mechanical systems make compliance almost impossible without overcompensating with excess air. O₂ trim systems, however, maintain a safe balance of fuel and air while keeping emissions within regulatory limits.

By retrofitting your system now, you’re not only saving money,you’re future-proofing your facility against changing laws.

Real-World Example: The Hidden Cost of Old Controls

Imagine a mid-sized industrial facility operating a 600 HP boiler running year-round.

Fuel cost: $5 million annually
Inefficiency from outdated linkages: 4%
Lost dollars: $200,000 every year

By installing linkageless controls and O₂ trim, the facility could reclaim much of that wasted cost. In many cases, payback occurs within 12–24 months. After that, the system delivers pure savings.

When to Consider an Upgrade

You should strongly consider upgrading your burner & controls if:

Your boiler still uses mechanical linkages
You’ve noticed rising fuel costs without increased output
You’ve struggled with emissions compliance
Your system requires frequent manual tuning
You’re planning a burner retrofit or boiler replacement

In most cases, linkageless controls and O₂ trim can be retrofitted to your existing burner, avoiding the cost of a full boiler replacement.

Tate Engineering: Your Partner in Burner & Controls Upgrades

At Tate Engineering, we specialize in burner retrofits and combustion system upgrades that bring aging equipment into the modern era. Our combustion experts can:

Assess your existing system and identify upgrade opportunities
Retrofit linkageless control systems for greater precision
Install O₂ trim systems for real-time efficiency gains
Ensure compliance with local and federal emissions standards
Provide training and ongoing support for your team

With Tate, you don’t just get upgraded equipment,you get a long-term partner dedicated to maximizing your energy efficiency and operational reliability.

The Case for Smarter Combustion

Boilers and burners are the heart of your facility. But if they’re still running on outdated mechanical linkages, you’re leaving money and compliance on the table.

Linkageless controls and O₂ trim upgrades offer a proven path to:

Higher fuel efficiency
Lower emissions
Greater reliability
Faster ROI

The future of combustion is precise, digital, and self-correcting. And Tate Engineering is here to help you get there.
